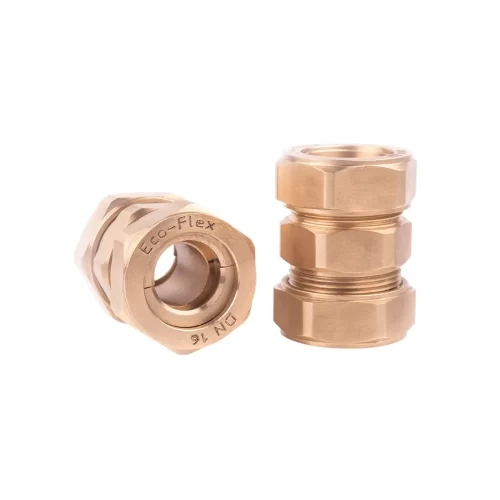

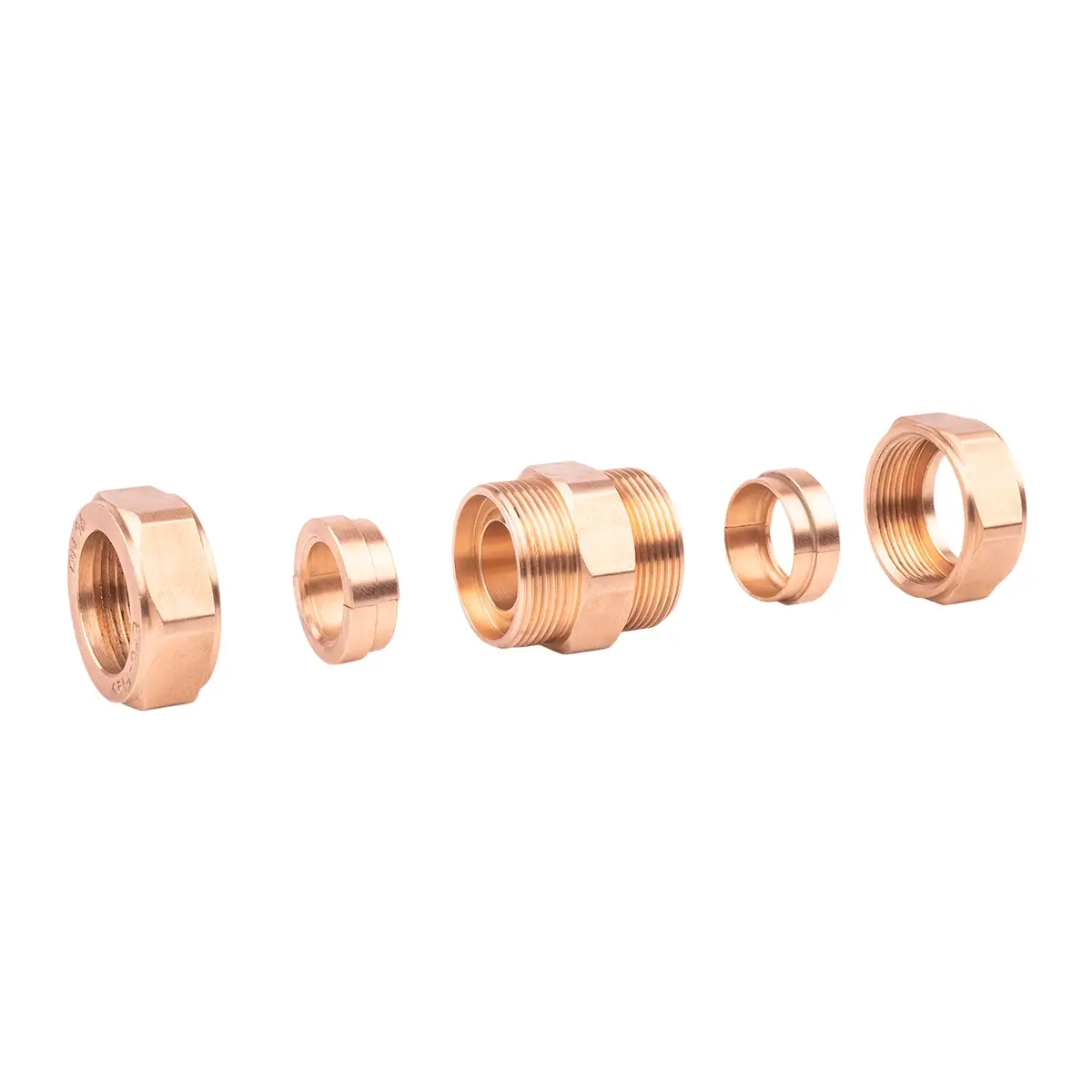

It is used for the installation of metal hoses without the use of special tools.
The connection created with this coupling is reliable and durable. It can be used many times, which makes it economically advantageous and practical. The coupling operates at temperatures up to 280°C and operating pressures up to 30 bar, which allows it to be used in high-temperature installations and high-pressure systems.
Technical specifications
| DN | Fittings | Connection type | Pressure, bar | Materials |
|---|---|---|---|---|

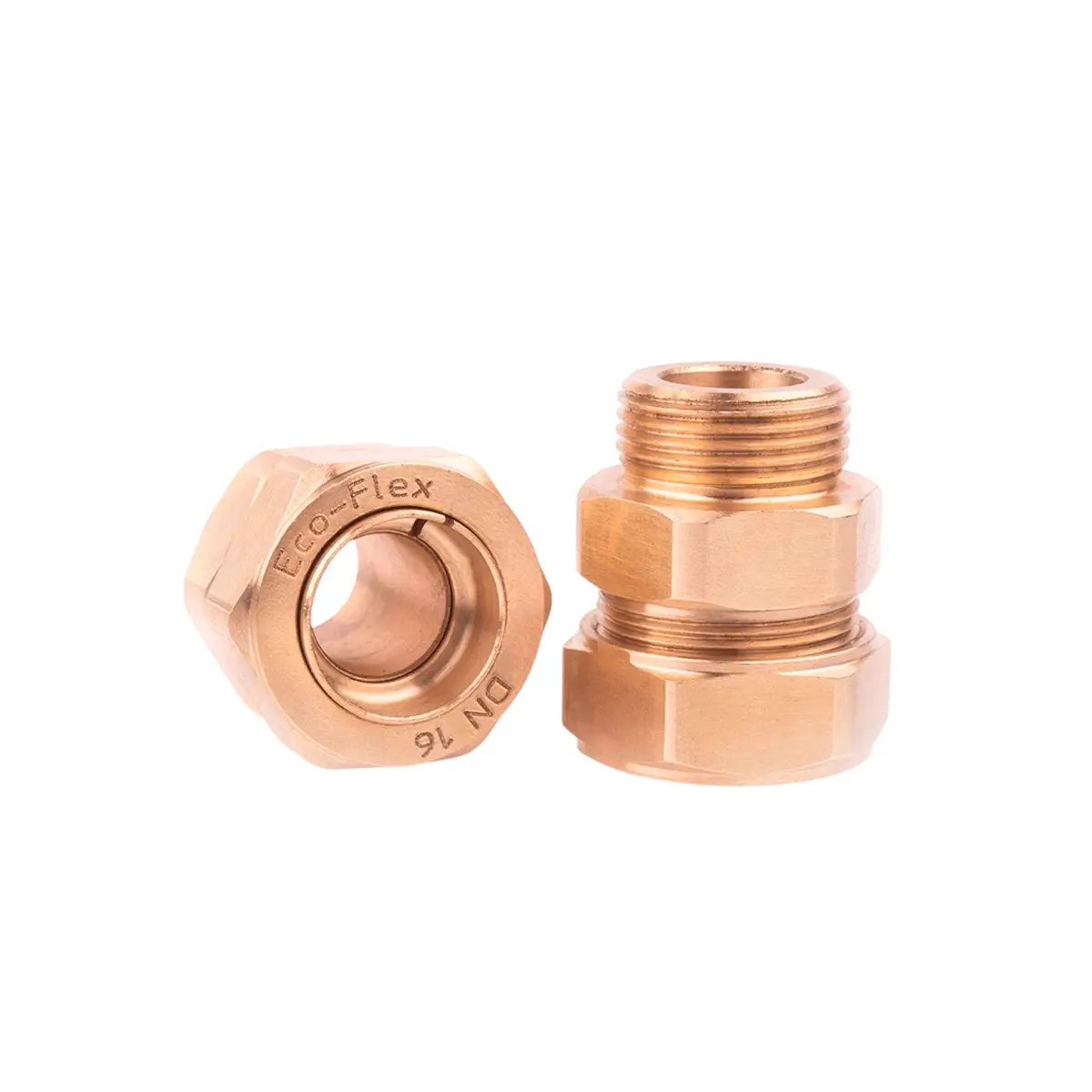

| 16 | pipe/external thread | DN16 — 3/4″ | 16 | Brass |

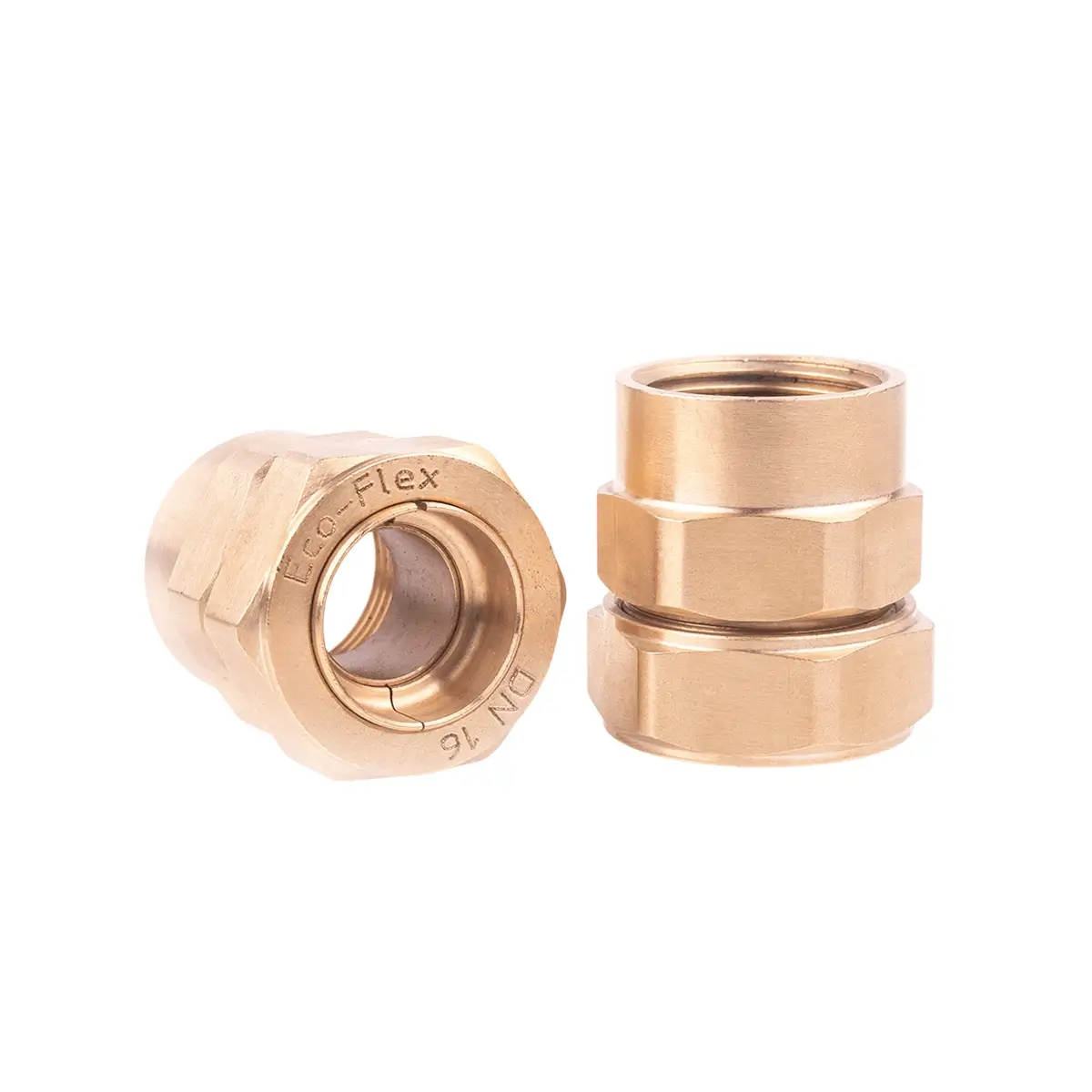

| 16 | pipe/internal thread | DN16 — 3/4″ | 16 | Brass |

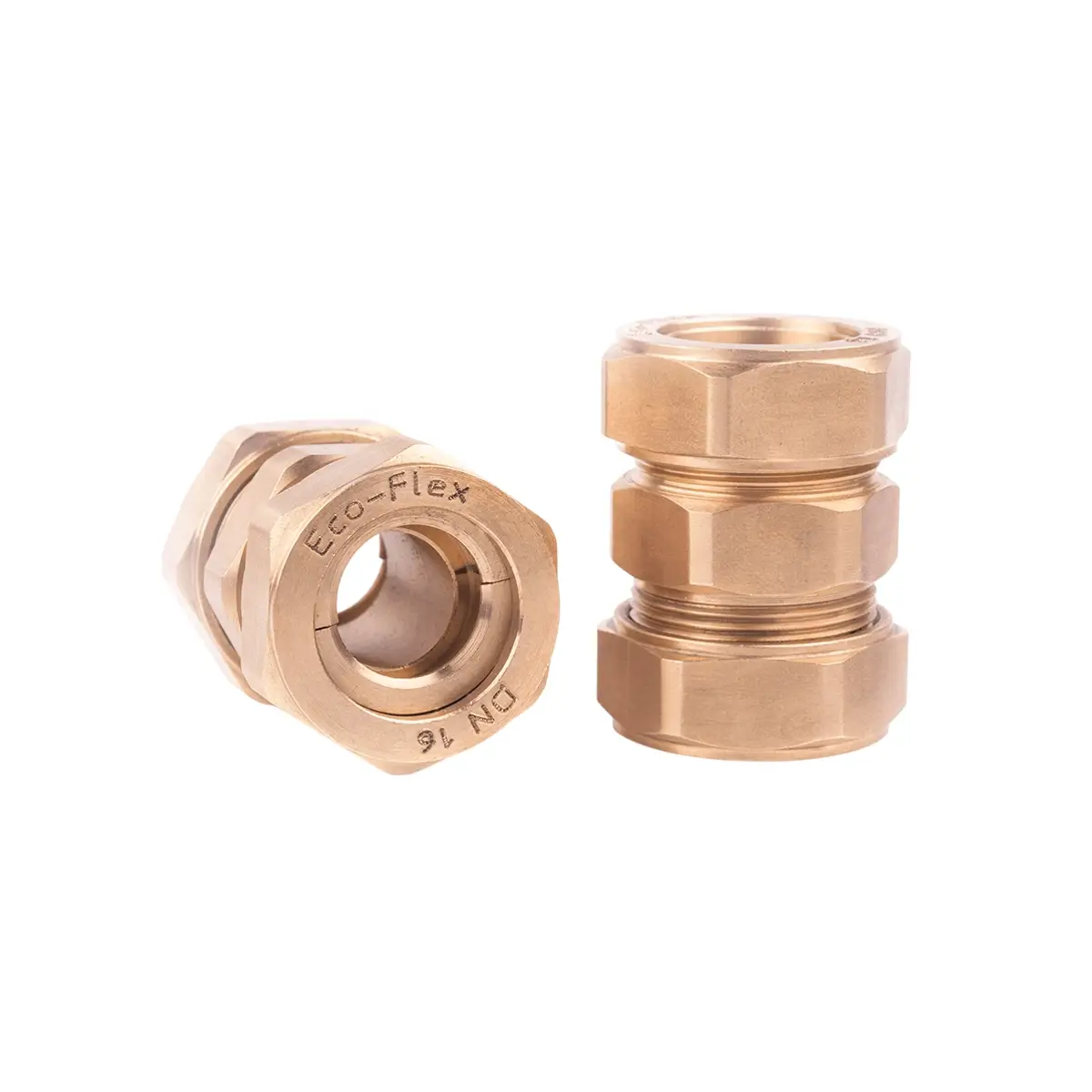

| 16 | pipe/pipe | DN16-DN16 | 16 | Brass |
| 20 | pipe/external thread | DN20 — 3/4″, DN20 — 1″ | 16 | Brass |
| 20 | pipe/internal thread | DN20 — 3/4″, DN20 — 1″ | 16 | Brass |
| 20 | pipe/pipe | DN20-DN20 | 16 | Brass |
| 25 | pipe/external thread | DN25 — 1″, DN25 — 1 1/4″ | 16 | Brass |
| 25 | pipe/internal thread | DN25 — 1″, DN25 — 1 1/4″ | 16 | Brass |
| 25 | pipe/pipe | DN25 — DN25 | 16 | Brass |
